Forged Threaded Fittings

High-pressure threaded fittings in Stainless Steel, Duplex Steel and Super Duplex Steel — manufactured to ASME B16.11 with NPT and BSP threading.

Forged Threaded Fittings – 90 degree elbow
Product Overview

Forged Threaded Fittings

Cunimet Alloy International manufactures a complete range of forged threaded pipe fittings for high-pressure piping systems. Our threaded fittings are produced through a closed-die forging process followed by CNC machining to achieve precise thread profiles conforming to ASME B1.20.1 (NPT) and BS EN 10226 (BSP).

Available in pressure classes 2000#, 3000# and 6000#, our threaded fittings are suitable for process piping, instrumentation systems, hydraulic lines and utility services where ease of assembly and disassembly is required.

ASME B16.11 MSS SP-79 ASTM A182 NPT / BSP Threads 2000# / 3000# / 6000#
Request a Quote
Product Types

Threaded Fitting Types Available

90 Degree Threaded Elbow forged

90 Degree Elbow

Full-bore 90-deg forged threaded elbow for direction changes in high-pressure lines.

View Details 45 Degree Threaded Elbow forged

45 Degree Elbow

Forged 45-deg threaded elbow for moderate angle changes in piping systems.

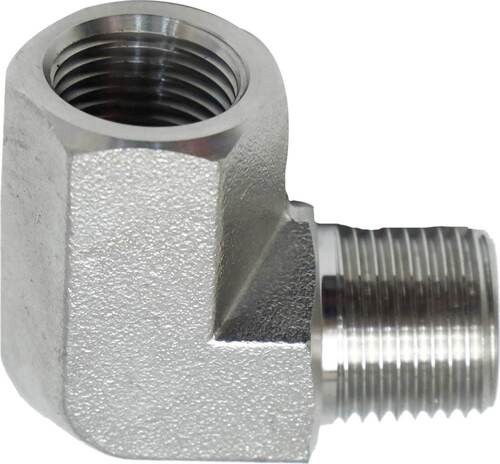

View Details Forged Threaded Street Elbow

Street Elbow

One male and one female NPT end for close-coupled direction changes without a nipple.

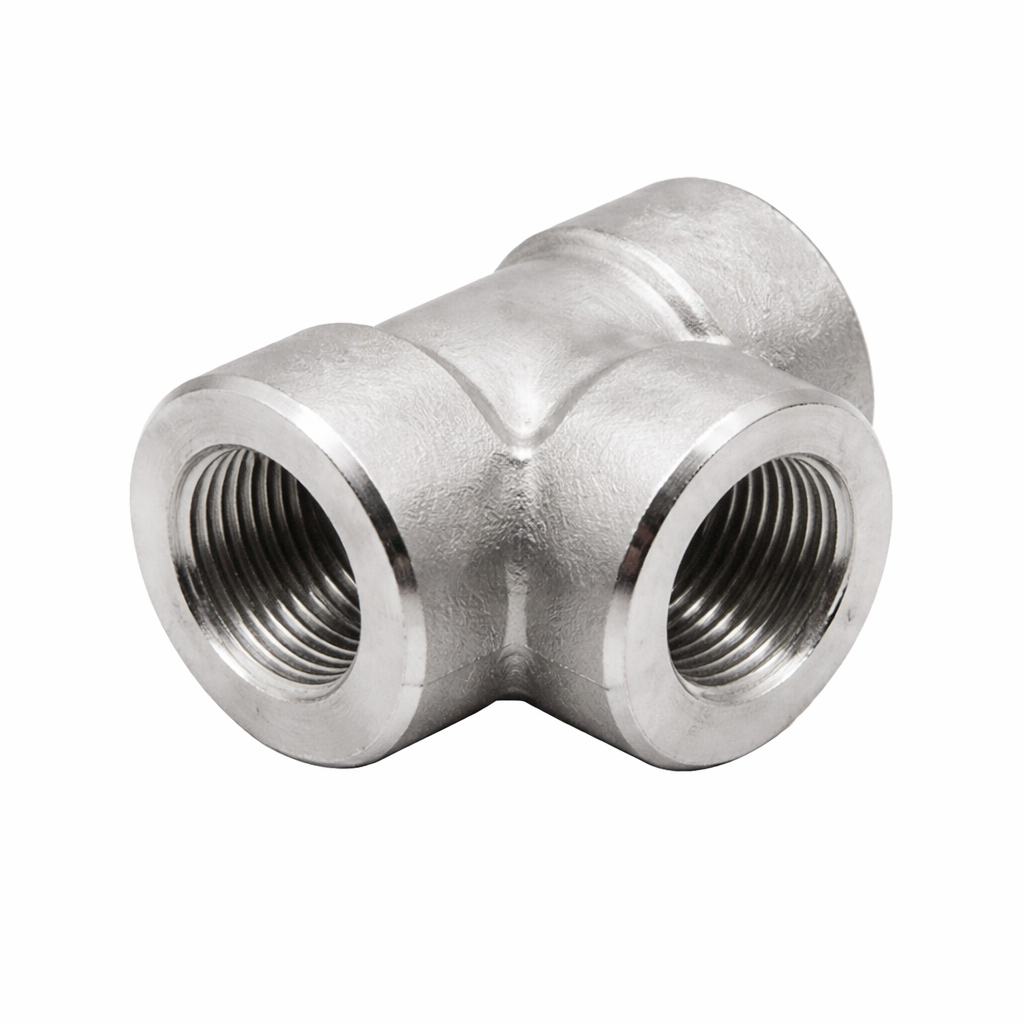

View Details Forged Threaded Equal Tee

Equal Tee

Three equal female NPT outlets for branch connections in threaded piping systems.

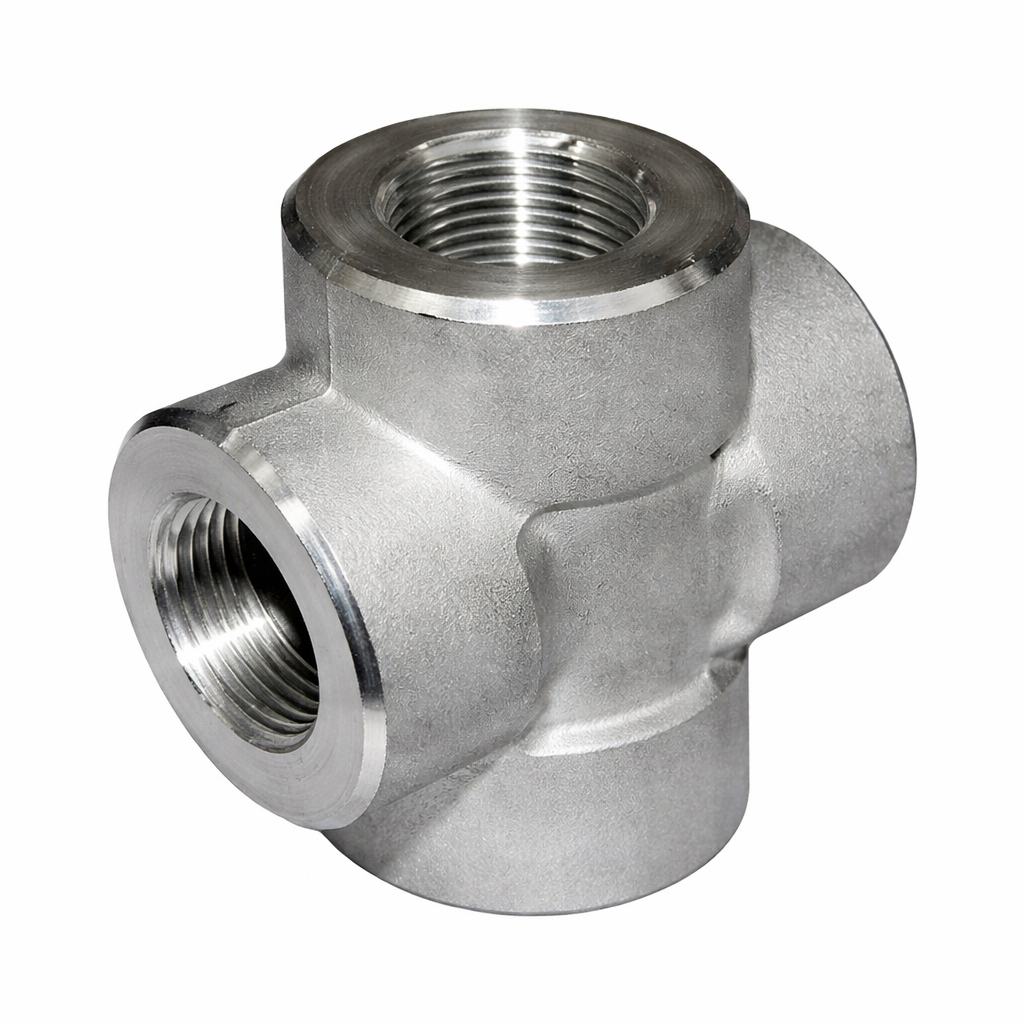

View Details Forged Threaded Equal Cross

Equal Cross

Four equal female NPT outlets for multi-directional branch piping arrangements.

View Details Forged Threaded Union

Union

Three-piece forged union allowing easy disconnection of piping without rotation.

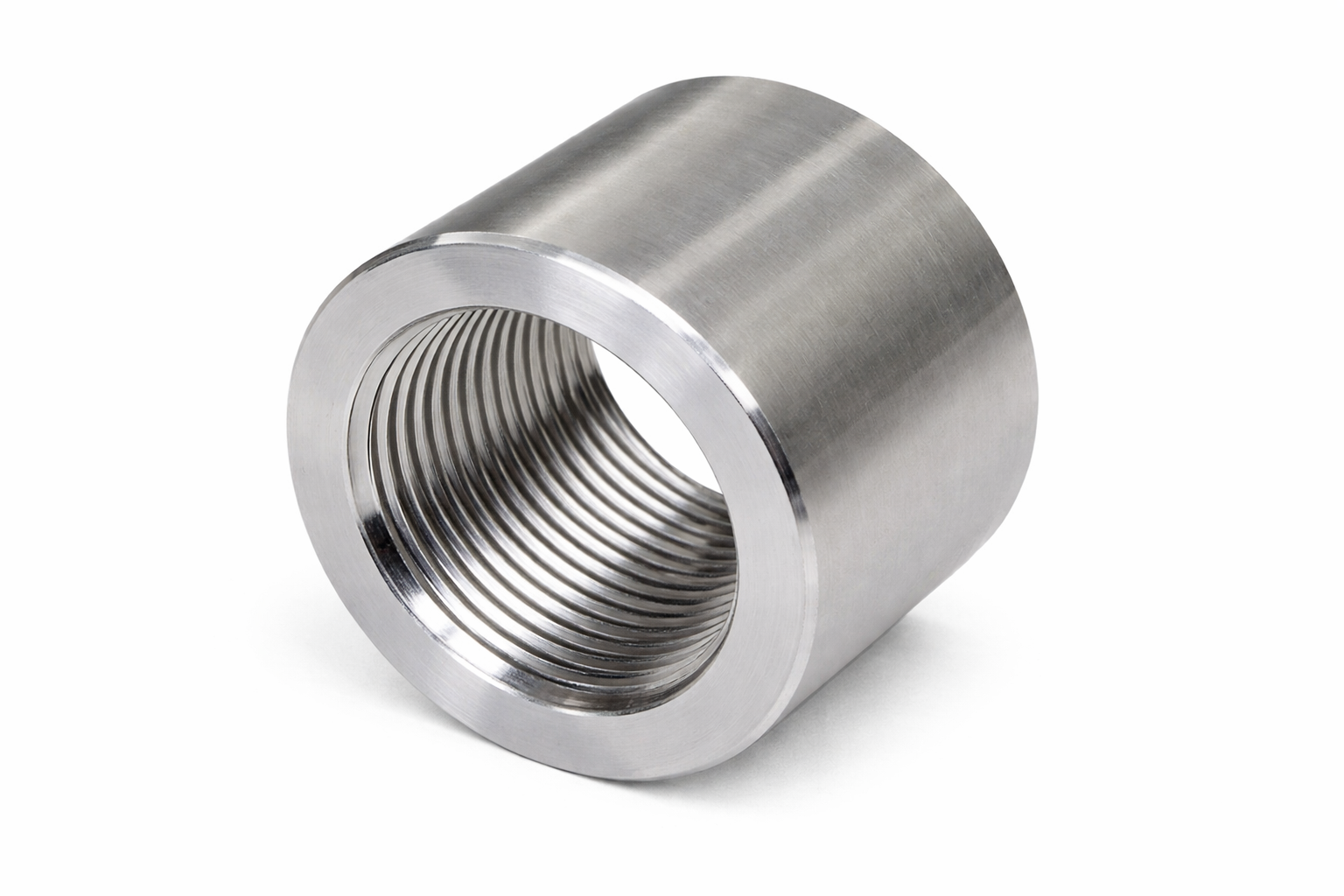

View Details Forged Threaded Coupling

Full Coupling

Forged full coupling for connecting two equal-diameter pipes with threaded ends.

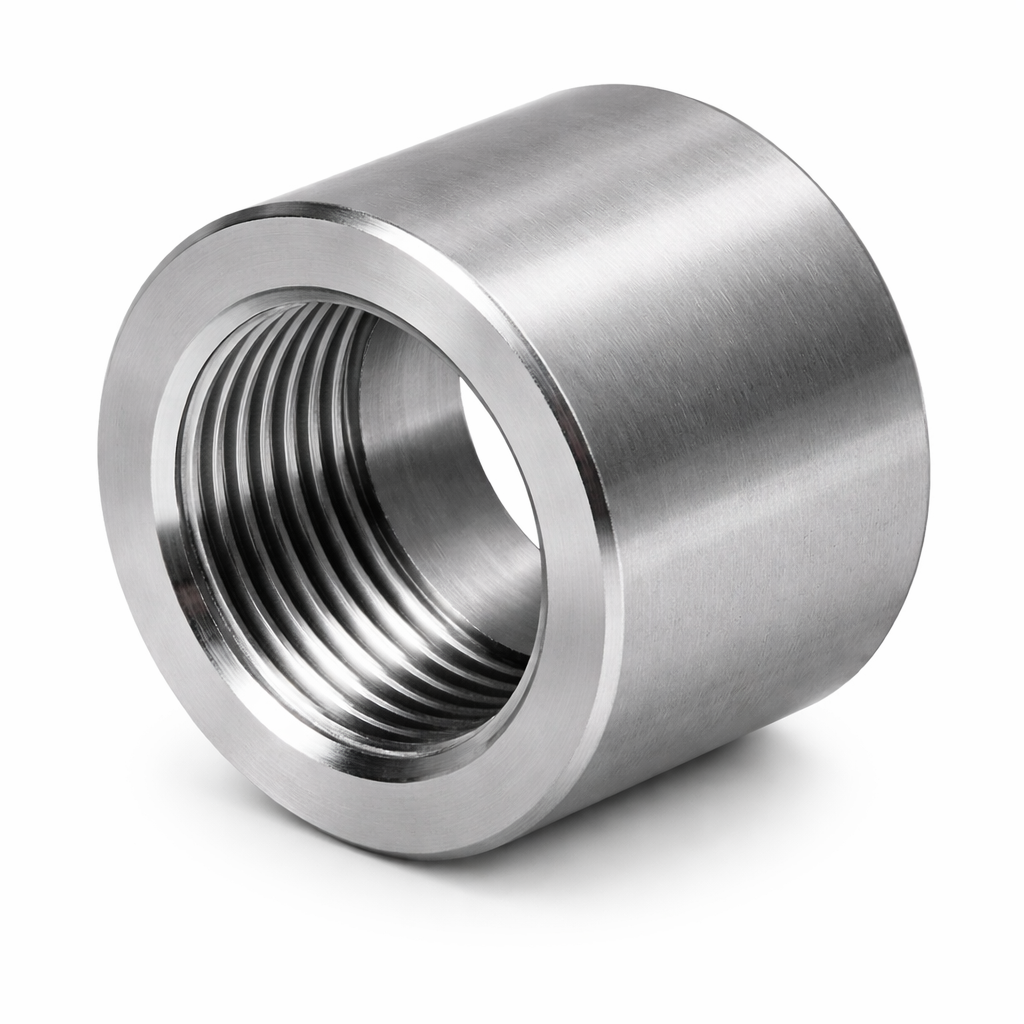

View Details Forged Threaded Half Coupling

Half Coupling

One female NPT end and one plain weld face for threaded branch and instrument connections.

View Details Forged Threaded Reducing Coupling

Reducing Coupling

Large and small female NPT ends for joining two different pipe sizes.

View Details Forged Threaded Cap

Cap

Forged threaded cap for blanking and pressure-testing pipe ends.

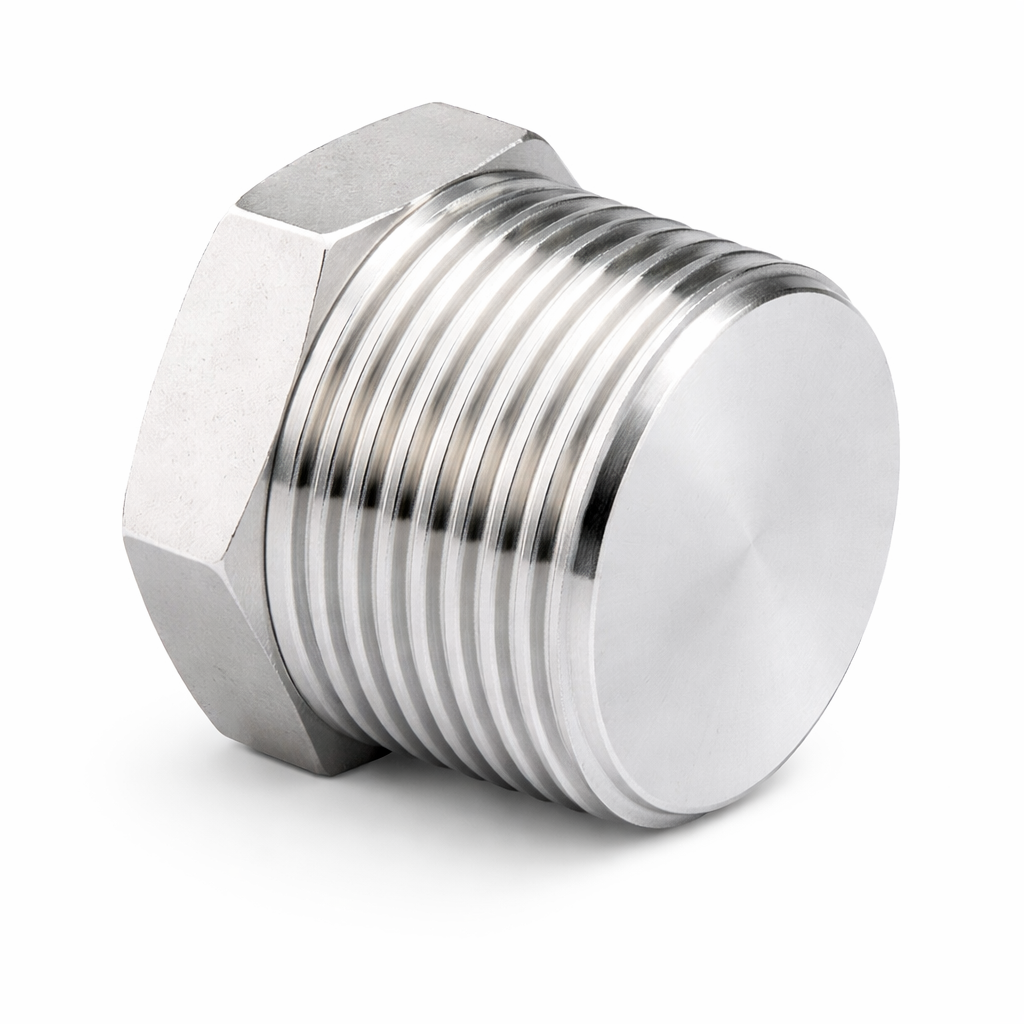

View Details Forged Threaded Plug Hex

Hex Plug

Forged hex head plug for closing open pipe ends in instrumentation and utility systems.

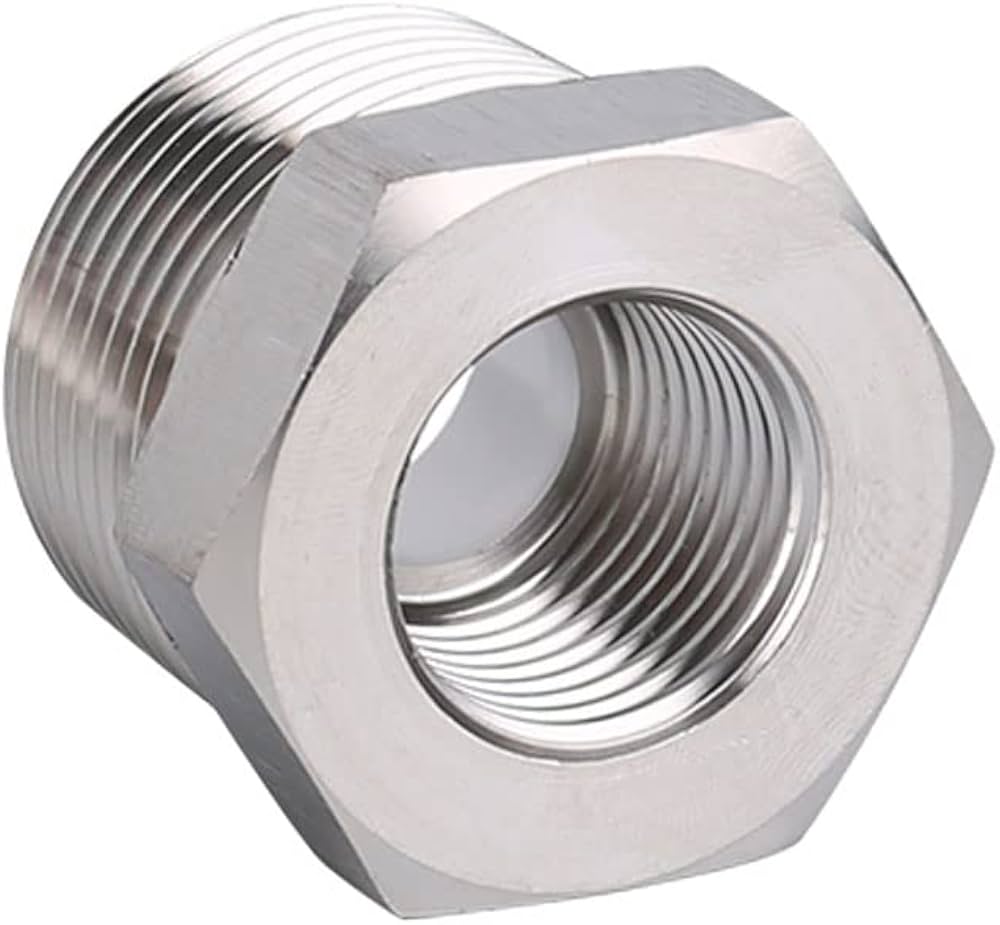

View Details Forged Threaded Hex Bushing

Hex Bushing

Male and female NPT ends of different sizes for reducing pipe diameter within a single fitting.

View Details Forged Threaded Hex Nipple

Hex Nipple

Hex-bodied nipple with male NPT threads on both ends for short pipe-to-fitting connections.

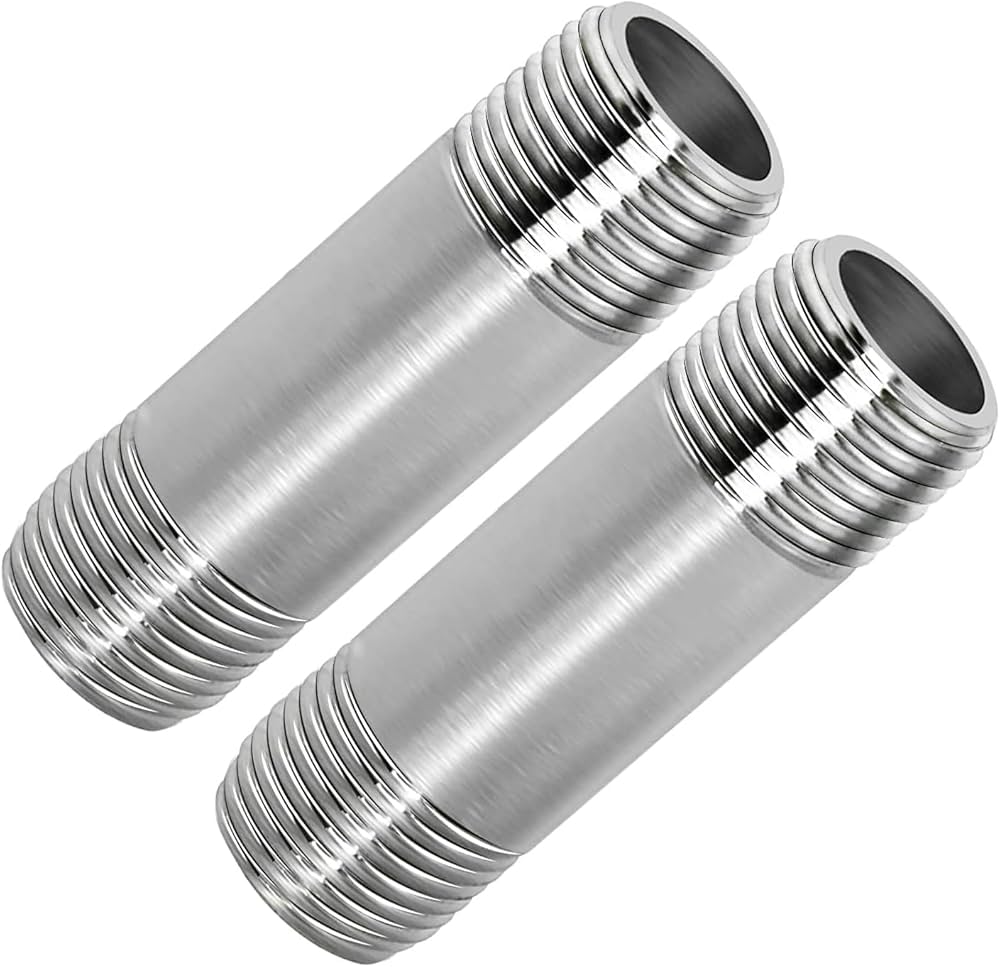

View Details Forged Threaded Barrel Nipple

Barrel Nipple

Round-bodied nipple with male NPT threads on both ends, available in close and long lengths.

View Details Forged Swage Nipple

Swage Nipple

Concentric or eccentric reducing nipple with male NPT threads on both ends.

View Details Forged Threaded Boss

Boss

Weld-on NPT nozzle boss for adding threaded connections to vessels and pipe walls.

View Details

Custom sizes, pressure classes and BSP threading also available on request.

Technical Data

Threaded Fittings — Specifications

ParameterDetails
Dimensional StandardASME B16.11 / MSS SP-79 / MSS SP-83
Material StandardASTM A182 / ASTM A105 (where applicable)
Thread StandardASME B1.20.1 (NPT) / BS EN 10226 (BSP)
Size Range1/8" NPS to 4" NPS
Pressure Classes2000# / 3000# / 6000#
Available GradesSS 304, 304L, 316, 316L, 321 | Duplex S31803, S32205 | Super Duplex S32750, S32760
Heat TreatmentSolution Annealed and Quenched (Duplex / Super Duplex) | Annealed (SS)
TestingHydrostatic, PMI, Hardness, Chemical Analysis, Dimensional Inspection
DocumentationEN 10204 3.1 / 3.2 Mill Test Certificates, Packing List, Test Reports

Request a Quote for Threaded Fittings

Provide your grade, size, pressure class and quantity for a prompt quotation with full documentation support.
